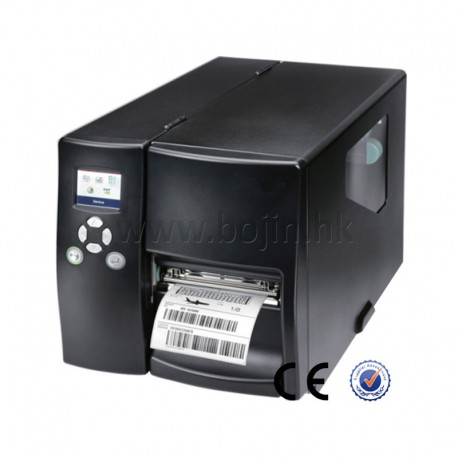

Specification of BJ-2250 Desktop Mailing Label Printer
-
Desktop Mailing Label Printer BJ-2250
-
Print Method: Thermal Transfer/Direct Thermal
-
Resolution: 203 dpi (8 dots/mm)
-
Print Speed: 7IPS (177 mm/s)
-
Print Width: 4.09" (104mm)
-
Print Length: Min. 0.16" (4 mm); Max. 100" (2540 mm)
-
Memory: 8MB Flash (4MB for user storage)/16MB SDRAM
Sensor Type of BJ-2250 Desktop Mailing Label Printer
Adjustable reflective sensor and transmissive sensor left aligned
Media of BJ-2250 Desktop Mailing Label Printer
-
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto-sensing or programming
-
Width: 1" (25.4 mm) Min. – 4.64" (118 mm) Max.
-
Thickness: 0.003" (0.06 mm) Min. – 0.01" (0.25 mm) Max.
-
Label roll diameter: Max. 8" (203.2 mm) , Max. 6" (152.4 mm)
-
Core diameter: 3", 1.5" (76,2 mm, 38,1 mm)
Ribbon of BJ-2250 Desktop Mailing Label Printer
-
Types: Wax, wax/resin, resin
-
Length: 1471' (450 m)
-
Width: 1.18" Min – 4.33" (30 mm – 110 mm) Max
-
Ribbon roll diameter.: 2.99" (76 mm)
-
Core diameter: 1" (25.4 mm)
Printer Language of BJ-2250 Desktop Mailing Label Printer
EZPL, GEPL, GZPL auto switch
Software of BJ-2250 Desktop Mailing Label Printer
-
Label design software: GoLabel (for EZPL only)
-
Driver & DLL: Windows 2000, XP, Vista, 7, Windows Server 2003 & 2008
Resident Fonts of BJ-2250 Desktop Mailing Label Printer
-
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
-
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
-
Bitmap fonts 8 times expandable in horizontal and vertical directions
-
Scalable fonts 90°, 180°, 270° rotatable
Download Fonts of BJ-2250 Desktop Mailing Label Printer
-
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
-
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
-
Scalable fonts 90°, 180°, 270° rotatable
Barcodes of BJ-2250 Desktop Mailing Label Printer
-
1-D Bar codes:Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar
-
2-D Barcodes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code
Code Pages of BJ-2250 Desktop Mailing Label Printer
-
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
-
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
-
Unicode (UTF8, UTF16)
Graphics of BJ-2250 Desktop Mailing Label Printer
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces of BJ-2250 Desktop Mailing Label Printer
-
Serial port: RS-232 (DB-9)
-
USB 2.0
-
Ethernet 10/100 Mbps
-
USB Host
Control Panel of BJ-2250 Desktop Mailing Label Printer
-
Color TFT LCD with navigation button
-
Power on/off button
-
Calibration button
Power of BJ-2250 Desktop Mailing Label Printer
Auto Switching 100-240VAC, 50-60Hz
Environment of BJ-2250 Desktop Mailing Label Printer
-
Operation temperature: 41°F to 104°F (5°C to 40°C)
-
Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity of BJ-2250 Desktop Mailing Label Printer
-
Operation: 30-85%, non-condensing.
-
Storage: 10-90%, non-condensing.
Agency Approvals of BJ-2250 Desktop Mailing Label Printer
CE(EMC), FCC Class A, CB, cUL, CCC
Dimension of BJ-2250 Desktop Mailing Label Printer
-
Length: 20.15" (512 mm)
-
Height: 11.45" (291 mm)
-
Width: 10.78" (274 mm)
Weight of BJ-2250 Desktop Mailing Label Printer
33 lbs (15Kg), excluding consumables
Options & Accessories of BJ-2250 Desktop Mailing Label Printer
-
Cutter Module
-
Label Dispenser + Internal Rewinder
-
Parallel port adopter module (Centronic female 36-pin)
-
Applicator Interface (1 input, 3 outputs, power 500mA @ 5V, for project base)
-
External label roll holder for 10” (250 mm) O.D. label rolls
-
External label rewinder
