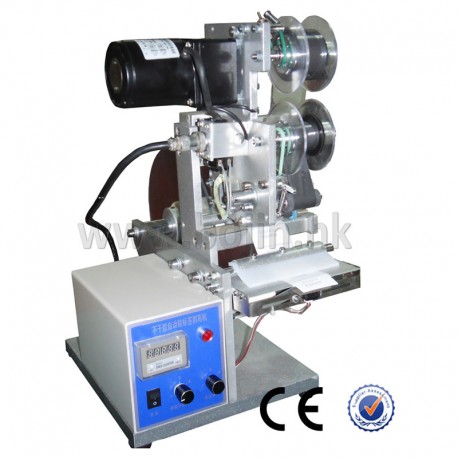

AL-1180D Auto Label Dispenser

Specifications of AL-1180D Auto Label Dispenser

• Available Width: 6-130mm
• Available Length: 8-300mm
• Feed Speed: 6-7m/min
• Max. OD of Roll: Φ25mm-250mm
• Power Supply: AC110V 60Hz / AC220V 50Hz
• Measurement & Net Weight: 37*28*28cm 6.5kg
• Lines can be printed: 1,2,3

Features of AL-1180D Auto Label Dispenser

• Ideal for small labels and small work areas
• Will dispense labels and die-cut parts
• Photosensor Accuracy and Reliability
• Automatically removes paper, vinyl,acetate, polyester, foil, etc. from its liner
• Automatically rewinds liner scrap for acleaner working environment
• No tools required for adjusting to different size labels
• No maintenance required
• High Torque Motor for large diameter label rolls
• LCD counter can show how many labels has been dispensed.
• User-friendly control system; Labels automatically peel off wrinkle-free;
• Automatic label feed and peel off when label is removed; Rows of small labels can be peeled off at one time;
• Can be used multi-person, increasing production efficiency; suitable for interval and continuous whole roll label type;
• Adjustable length of label to be peeled off; Auto counter from 0-999999mm assists in tracking production;
• Machine also could equipped with color ribbob printer according to clients, which is same as our AL1180D self-adhesive Automatic label machine.

Related Automatic Label Dispenser

Model	Available Width	Available Length
MAS-1150D	4-140mm	4-200mm
AL-505	4-160mm	4-300mm
AL-505R	4-120mm	4-300mm
AL-505S	4-70mm	4-100mm
AL-080D	4-80mm	4-100mm
AL-1180D	6-130mm	8-300mm
Labelcombi-60	5-60mm	10-300mm
Labelcombi-100	5-100mm	10-300mm
LabelCombi-130	5-130mm	10-300mm
