Operation Video of BJ-02C Automatic Wire Stripping Machine
Specification of BJ-02C Automatic Wire Stripping Machine
-
Model: BJ-02C TWO DRIVERS
-
Power: AC220/ 50HZ 110V/60HZ
-
Power: Rated 160W
-
Display: Full English LCD Display
-
Cutting length: 5-9999mm
-
Stripping length: End of a thread 0-35, line tail 0-15
-
Motor Step Angle Accuracy: 3-phase 6 shot 1.5/3
-
Cutting Tolerance: ±(0.002xL) mm or less
-

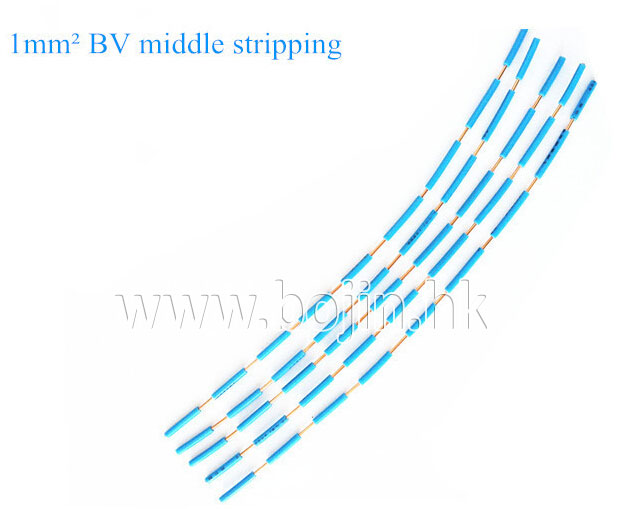

Cut the middle of stripping: 11
-
Wire Gauge Range: AWG16#-AWG30#
-
Core cross-section cut-line: 0.1 – 2.5mm²
-
Conduit diameter: Φ6
-
Appropriate wire stripping: PVC, Teflon, glass and wire
-
Blade Material: Hard tungsten steel
-
Stripper speed (Article / h): 3000~8000pcs/hour
-
Drive Mode: Two drives
-
Package Size: 390*350*255mm
BJ-02C Automatic Wire Stripping Machine
BJ-02C Automatic Wire Stripping Machine
BJ-02C Automatic Wire Stripping Machine
BJ-02C Automatic Wire Stripping Machine
BJ-02C Automatic Wire Stripping Machine
BJ-02C Automatic Wire Stripping Machine
Related Wire stripping machines
|
Model Number
|
BJ-02B
|
BJ-02D
|
BJ-02F
|
BJ-02MAX
|
|
Wire size
|
0.1~2.5 mm²
|
0.1- 4.5mm²
|
0.2 – 8.0 mm²
|
0.2– 16mm²
|
|
Conduit diameter
|
Φ6
|
Φ6
|
Φ10
|
Φ13
|
|
Wire Gauge Range
|
AWG16 – AWG32
|
AWG12 – AWG32
|
AWG8 – AWG32
|
AWG5-AWG30#
|
|
Drive Mode
|
Four-wheel drive
|
Four-wheel drive
|
Four-wheel drive
|
Four-wheel drive
|
|
Weight
|
35kg
|
35kg
|
35kg
|
35kg
|
