Operation Video of BJ-03MAX Cable Stripping Machine
Specification of BJ-03MAX Cable Stripping Machine
-
Model: BJ-03MAX EIGHT DRIVERS
-
Power: AC220/ 50HZ 110V/60HZ
-
Power: Rated 450W
-
Display: Full English LCD Display
-
Cutting length: 1-150000mm
-
Stripping length: End of a thread 0-100 line tail 0-100mm
-
Motor Step Angle Accuracy: 3-phase 6 shot 1.5/3
-
Cutting Tolerance: ±(0.002xL) mm or less
-
Cut the middle of stripping: 13
-
Wire size: AWG5-AWG30#
-
Core cross-section cut-line: 0.2– 25mm²
-
Conduit diameter: Φ13
-

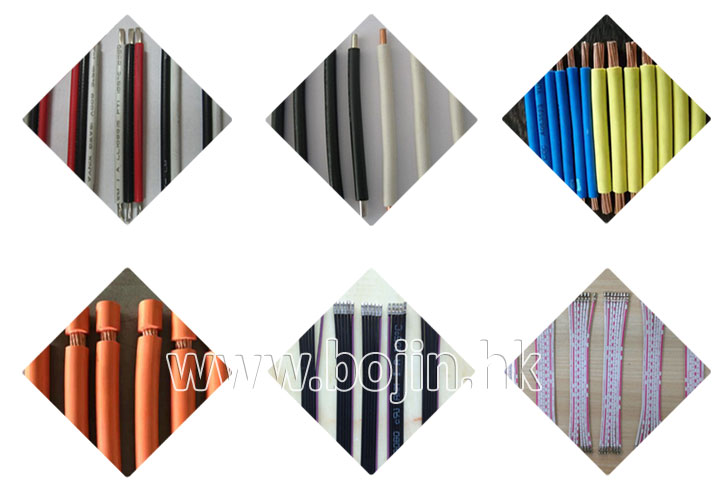

Appropriate wire stripping: PVC, Teflon, glass, and wire
-
Blade Material: Hard tungsten steel
-
Stripper speed (Article / h): L=100mm, 2000~5000pcs/hour
-
Drive Mode: Eight drives
-
Package Size: 420*390*280mm
BJ-03MAX Cable Stripping Machine
BJ-02MAX Cable Wire Stripping Machine
Related Wire stripping machines
|
Model Number
|
BJ-02B
|
BJ-02D
|
BJ-02F
|
BJ-02MAX
|
|
Wire size
|
0.1 – 2.5mm²
|
0.1 – 4.5mm²
|
0.2 – 8.0mm²
|
0.2 – 16mm²
|
|
Conduit diameter
|
Φ6
|
Φ6
|
Φ10
|
Φ13
|
|
Wire Gauge Range
|
AWG16 – AWG32
|
AWG12 – AWG32
|
AWG8 – AWG32
|
AWG5 – AWG30#
|
|
Drive Mode
|
Four-wheel drive
|
Four-wheel drive
|
Four-wheel drive
|
Four-wheel drive
|
|
Weight
|
35kg
|
35kg
|
35kg
|
35kg
|
