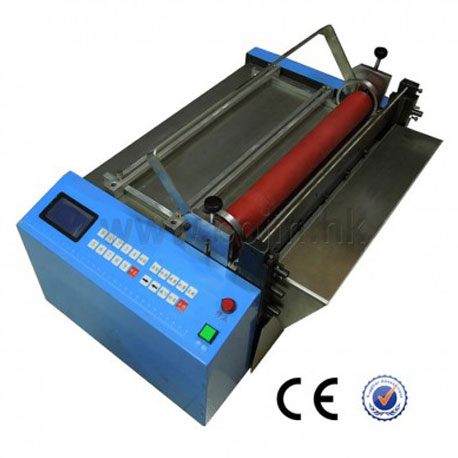

BJ-06R Cloth Tape Cutting Machine

BJ-06R Cloth Tape Cutting Machine

  • bj-06r-cloth-tape-cutting-machine_1505265831.jpg

Operation Video of BJ-06R Cloth Tape Cutting Machine

Features of BJ-06R Cloth Tape Cutting Machine

  • Belt slitting machine adopts electromechanical integrating technology, it automatically adjusts the length data through the input of computer program.
  • Automatically cutting various straps of different sizes such as braided tape, plastic tube, bootlace, plastic zipper, electrical wire, label, etc. All the data will be saved auto-matically before put off the switch. With features of high accuracy, high speed, easy to operate and stop working without materials. It's an ideal machine for increasing of efficiency, improving quality and saving labour.


Character of BJ-06R Cloth Tape Cutting Machine

  • Compensation: It can recover the differences caused by the material flexibility dissimilarity.
  • Memory: It will save the current datas automatically before the machine is closed.
  • Decimal point: Special decimal point function, raised the accuacy of the product consumedly.
  • Self-check: When a defect in the system, LCD screen will display breakdown source automatically, in order to expel in the convenient check.
  • Automatic power failure: 1 hour after machine stopped working, the main driving system will break power supply automatically to promise the service life of machine.
  • Automatic pause: Once the material uses up, it will stop a current work automatically.


Specifications and Index pf BJ-06R Cloth Tape Cutting Machine

  • Knife: Round
  • CUT LENGTH (mm): 15-99999
  • MAX CUT WIDTH (mm): 15-45
  • SPEED (Piece/min): 120
  • WEIGHT (kg): 20.4/24.0
  • VOLTAGE: AC 110V / 220V 50-60Hz
  • POWER: 0.22KW
  • LOADING RATE: 1
  • PACKAGE SIZE (L.W.H) mm: 410*525*430


Model Number BJ-02 BJ-03 BJ-05 BJ-06
Available Width 5-70mm 5-110mm 5-80mm 5-100mm
Available Length 1-99999mm 15-99999mm 15-99999mm 15-99999mm
Knife Cold cutting Hot cutting Cold cutting Cold cutting
Speed 120pcs/min 120pcs/min 120pcs/min 120pcs/min


  • bj-06r-cloth-tape-cutting-machine_1505265831.jpg
