Operation Video of Pneumatic Terminal Crimping Machine BJ-606E
Specification of Pneumatic Terminal Crimping Machine BJ-606E
-
Range of Application: 6mm(insulated terminal)//35mm²(Furcate terminal)
-
Air pressure range: 0.4-1Mpa
-
Output force: 13.5KN
-
Voltage range: AC 220V
-
Weight: 6.5kg
-
Overall dimension: 260*120*140mm
Unique Features of Pneumatic Terminal Crimping Machine BJ-606E
-
The machine is driven by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed.
-
The machine is fit for many kinds of terminals.
-
The crimping machine and the gas source connection.
-
Will match the supply air terminal and wire-bound good.
-
According to the required length of crimp terminals to adjust the depth of the interface pressure.
-
It is good for terminal crimping in large or medium quantity.
-
If there are a lot of different kinds of terminals to be crimped, this crimper is the best choice.

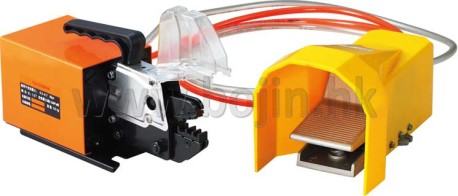

Pneumatic Terminal Crimping Machine BJ-606E
Pneumatic Terminal Crimping Machine BJ-606E
Pneumatic Terminal Crimping Machine BJ-606E
Pneumatic Terminal Crimping Machine BJ-606E
Pneumatic Terminal Crimping Machine BJ-606E
Related Terminal Crimping Machine
|
Model Number
|
BJ-601E
|
BJ-602E
|
BJ-603E
|
BJ-604E
|
|
Crimping range
|
0.5-16mm²
|
0.5-16mm²
|
0.5-50mm²
|
0.08-120mm²
|
|
Output
|
2.5T
|
1.8T
|
2.5T
|
2.5T
|
|
Voltage range
|
AC 220V
|
AC 220V
|
AC 220V
|
AC 220V
|
|
Weight
|
10kg
|
6kg
|
6kg
|
6.5kg
|
