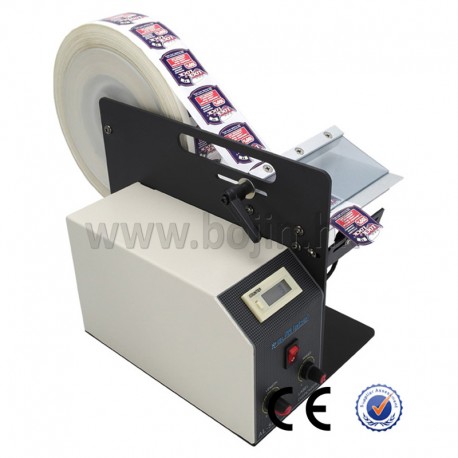

AL-505R SERIES Electrical Label Dispenser

AL-505R SERIES Electrical Label Dispenser

  • electrical-label-dispenser-al-505r-series-1_1505197565.jpg
  • electrical-label-dispenser-al-505r-series-2.jpg

Operation Video of AL-505R SERIES Electrical Label Dispenser

Features of AL-505R SERIES Electrical Label Dispenser

  • Ideal for small labels and small work areas
  • Will dispense labels and die-cut parts
  • Photosensor Accuracy and Reliability
  • Automatically removes paper, vinyl, acetate, polyester, foil, etc. from its liner
  • Automatically rewinds liner scrap for acleaner working environment
  • No tools required for adjusting to different size labels
  • No maintenance required
  • High Torque Motor for large diameter label rolls
  • LCD counter can show how many labels has been dispensed.

Specifications of AL-505R SERIES Electrical Label Dispenser

  • Available Width: 4 ~120mm
  • Please inform us the size when you order
  • Available Length: 4 ~ 300mm
  • Feed Speed: 5m/min
  • Max. OD of Roll: 250mm
  • Power Supply: AC110V 60Hz / AC220V 50Hz
  • Measurement & Weight: 260*208*208mm 5.0kg

AL-505R Series:

Model Number Label width Label Length Dimensions (L*W*H) Weight
AL-505MR 4-120mm 4-300mm 260*208*208mm 5.0 kg
AL-505LR 4-160mm 4-300mm 260*248*208mm 5.0 kg
AL-505XLR 4-200mm 4-300mm 260*288*208mm 6.0 kg



Related Automatic Label Dispenser

Model Available Width Available Length
MAS-1150D 4-140mm 4-200mm
AL-505 4-160mm 4-300mm
AL-505R 4-120mm 4-300mm
AL-505S 4-70mm 4-100mm
AL-080D 4-80mm 4-100mm
AL-1180D 6-130mm 8-300mm
Labelcombi-60 5-60mm 10-300mm
Labelcombi-100 5-100mm 10-300mm
LabelCombi-130 5-130mm 10-300mm
